Description
The Compact Shaper from Laguna is already regarded as best in class. Impressive precision fence and wide-range RPM make it a versatile investment for any pro. The fit and finish on this world class machine is incredible. THIS MACHINE is PICK-UP Only. We do not ship Laguna machines. If we have the machine listed we have it in stock and ready for pick-up. Features:
-
Motor: 3HP, 1 Phase, 220 Volt 60 Hz
-
Table Size:32″ x 26-1/2″
-
Spindle Travel: 4″
-

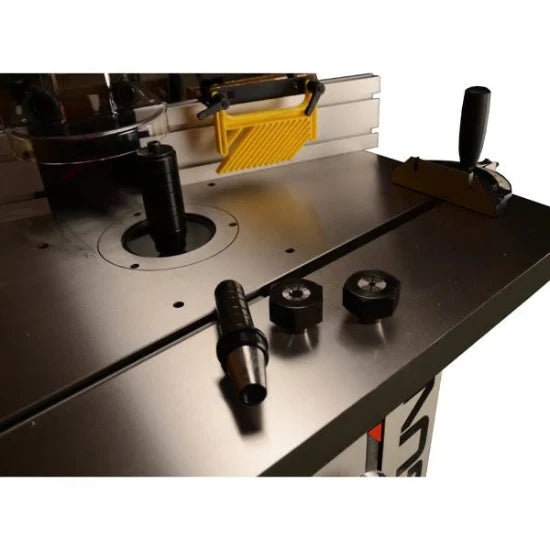

Spindle Sizes: 3/4″ & 1-1/4″ (Incl.)
-
Router Collets: 1/4″ & 1/2″ (Incl.)

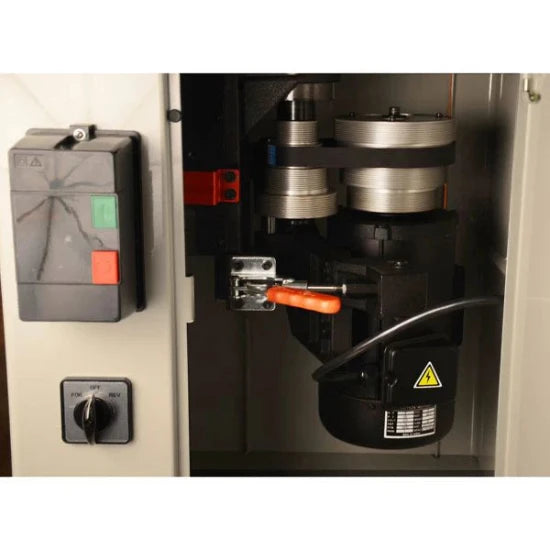

You will be hard pressed to find a better value than the Compact Shaper: 4 speeds, generous sized table, wheels built right in.Easy spindle lock makes tool changes a snap.One of the most impressive features is the speed change.A simple pull of a handle compresses the distance from the spindle to the pulley, changing speeds along the way.Another outstanding detail is the flat poly-groove belt which transfers more power with less vibration; something you won’t find in this price range anywhere else.
-
Capacity Under Nut: 4″ (1-¼″ Spindle)
-
Spindle Speeds: 4000, 6000, 8000, 10000 RPM
-
Forward/Reverse: Yes
-
Table Opening Diameter: 6-¼″
-
Table Insert Opening Diameter: 2-½″, 4-5/16″
- Rotation: Forward/Reverse
Table T-Slot: Yes
Fence Size: 4-13/16″ x 16″
Drive Belt: Flat Poly-Groove
Table Height From Floor: 34″
Dust Port Diameter: 4″
Micro Adjustment On Fence: Yes
Wheel System: Built In
Weight (Net/Ship): 450/500 lbs
Table Tilt Right: 45°
Table Tilt Left: 7°
Positive Stop: 90°
Table Size: 21-½″ x 16″
Quick-Release Tension
Rack & Pinion Upper Guide
Heavy Duty Cast Trunion: 8″ x 13″
Included: 6ft Cord With Plug
Nema: 5-15P
Premium Anodized Aluminum Throat Plate Hi/Low Aluminum Fence: 18″ x 5-½″ x ½″ Dual Voltage Motor: 115/230, Pre-Wired 115 Volt Motor:14/7 Amp TEFC HP: 1-¾, 115/230V Safety Key 12″ Resaw Stand Included Blade Length: 115" Min Blade Width: ⅛″ Max Blade Width: ¾″ Illuminated On/Off Switch Shipping Weight: 350lbs Shipping Dimensions (L x W x H): 55in x 22in x 25in
